Overview

Connect GWI Spark MCP to Google Gemini Enterprise as a custom MCP server data store. This guide uses the v2beta MCP endpoint (/v2beta/spark-api/mcp). Console steps match the v1 Gemini Enterprise guide; only the MCP Server URL differs.
Contact GWI to obtain your OAuth Client ID and Client Secret. Gemini Enterprise does not yet support Dynamic Client Registration (DCR), so credentials are provisioned and shared with you manually.
Reference: Google — Set up your custom MCP server data store Terms (Google): data store ≈ connector · MCP tools ≈ Gemini actions.

​
How to use this guide

  1. Open Google’s setup guide side by side with this page.
  2. Complete each step in the Gemini Enterprise console.
  3. When a field needs a value, copy from the Production values table below.
  4. Screenshots show the UI at each step.

​
Production values

​
Setup walkthrough

Follow the steps below in the Gemini Enterprise console. They mirror Google’s setup guide; when a form asks for URLs or OAuth settings, use the Production values table above.

​
Create the custom MCP server data store

Maps to Google: Create the custom MCP server data store.

​
1. Data stores list

  1. Gemini Enterprise → Data stores
  2. Confirm Current location (for example eu) — edit if your org requires another multi-region
  3. Click + Create data store

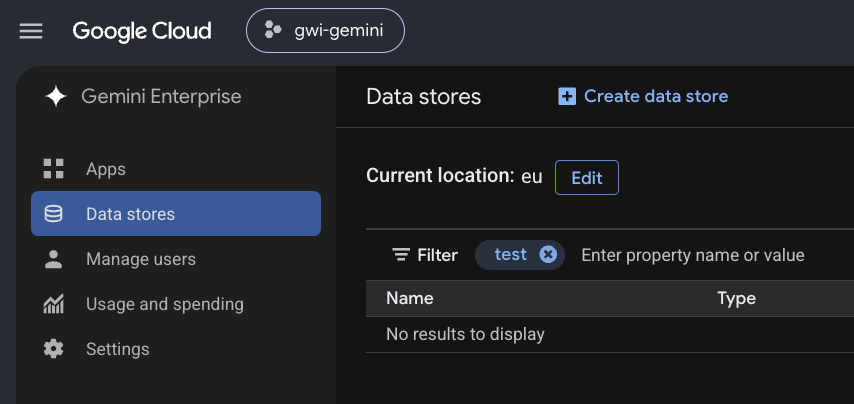

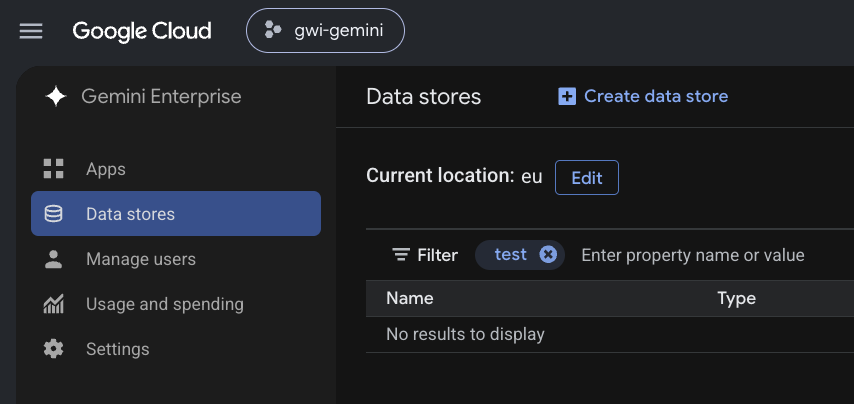

Gemini Enterprise data stores list

​
2. Select source

  1. Search sources → type Custom MCP Server
  2. On the Custom MCP Server card → Add MCP server

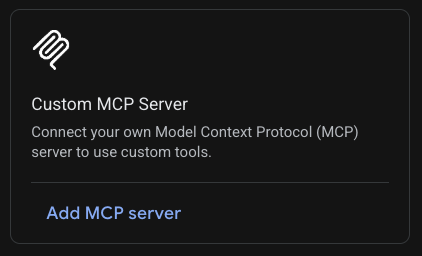

Custom MCP Server source card

​
3. Authentication — OAuth 2.0

  1. Select OAuth 2.0
  2. Fill the form from Production values (table above).

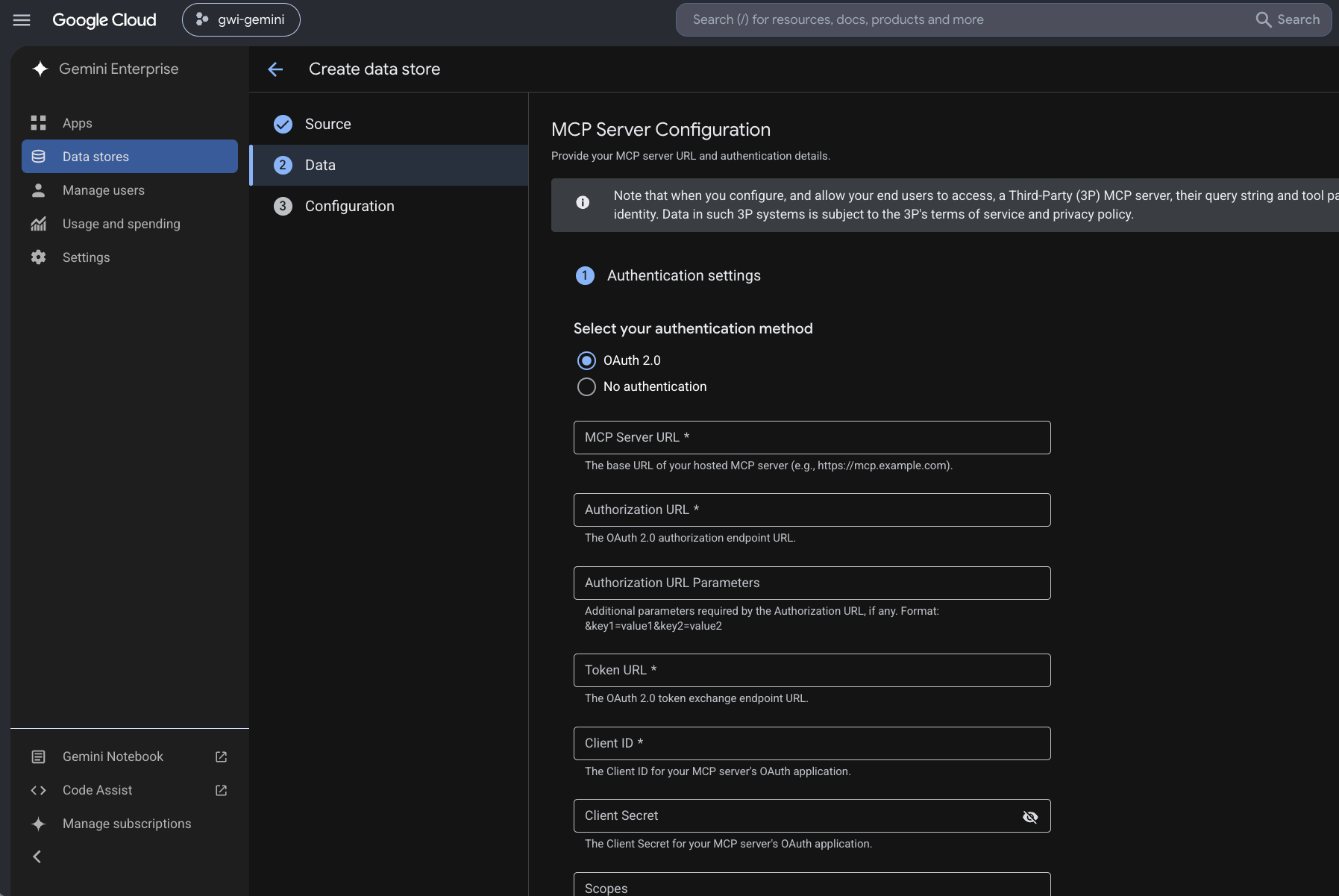

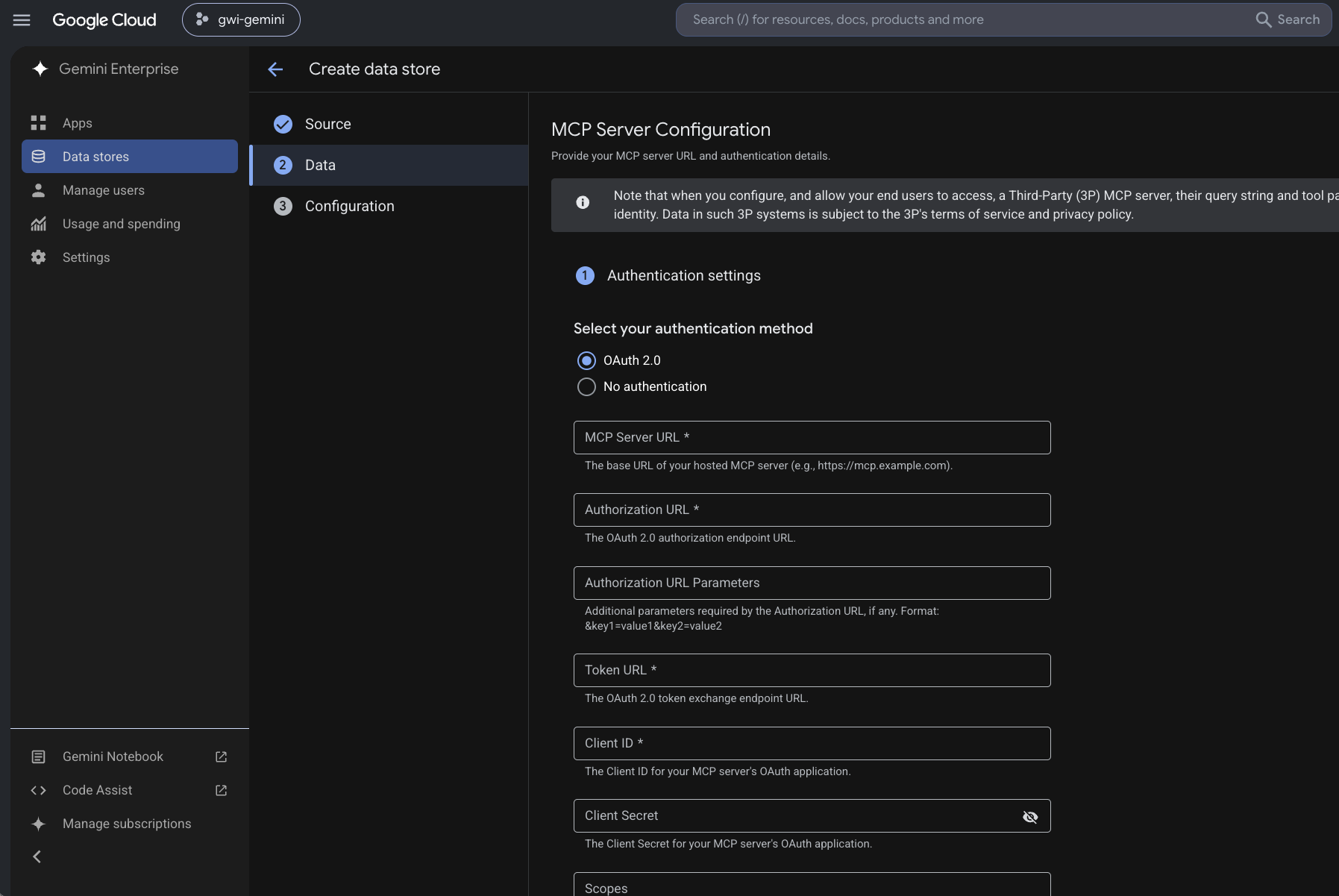

MCP OAuth form
  1. If Enable PKCE Support appears → leave unchecked
  2. Click Verify Auth
  3. A GWI sign-in popup opens → sign in with your work account
  4. Expect Successfully logged in. → click Continue on that success panel
  5. Back on the MCP form → Continue (wizard)

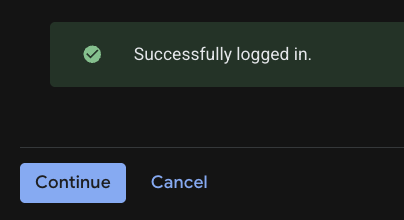

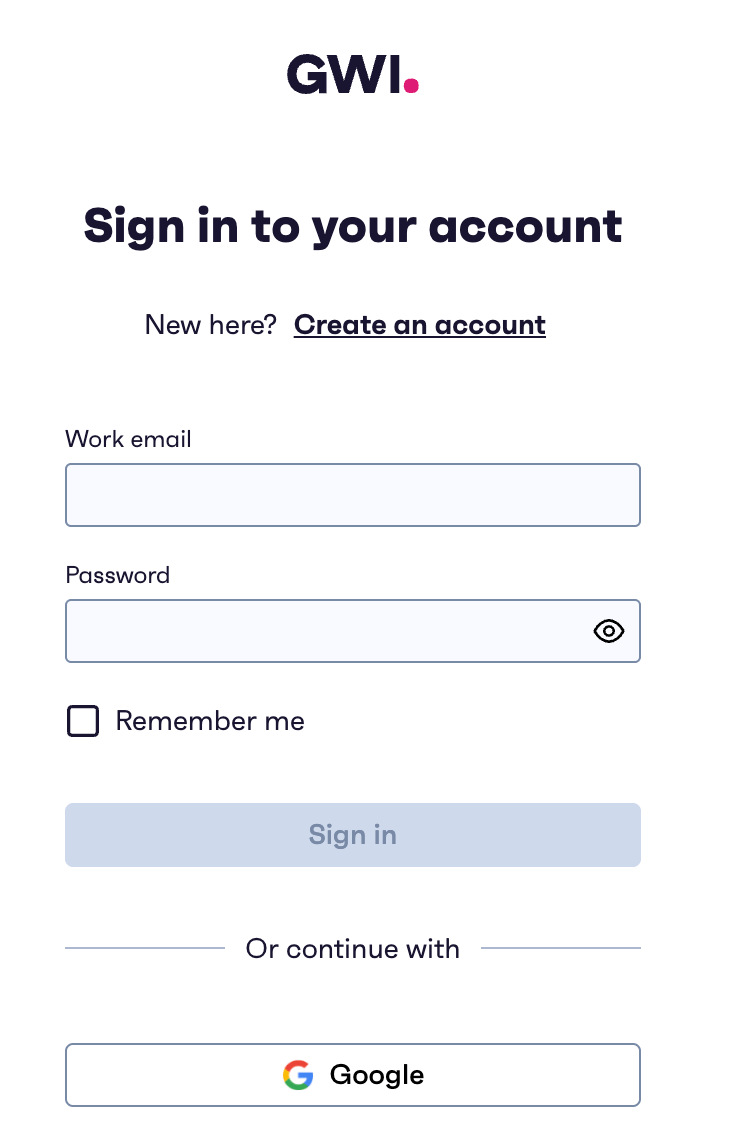

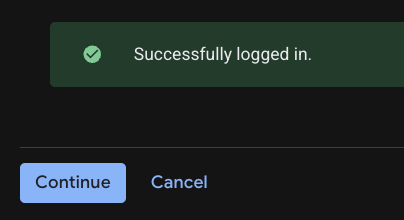

GWI sign-in during Verify Auth Verify Auth success

​
4. Configure your data connector → Create

  1. Multi-region / Location — pick the location for this connector (for example eu). Cannot change later.
  2. Data connector name — the name you’ll use to recognize the connector (for example GWI Spark MCP)
  3. Tag (optional) — stable identifier across versions; immutable once set
  4. Other optional fields (sensitive-data policy, encryption) — leave unless your org requires them
  5. Click Create
  6. Wait until the data store state is Active (Creating → Active)

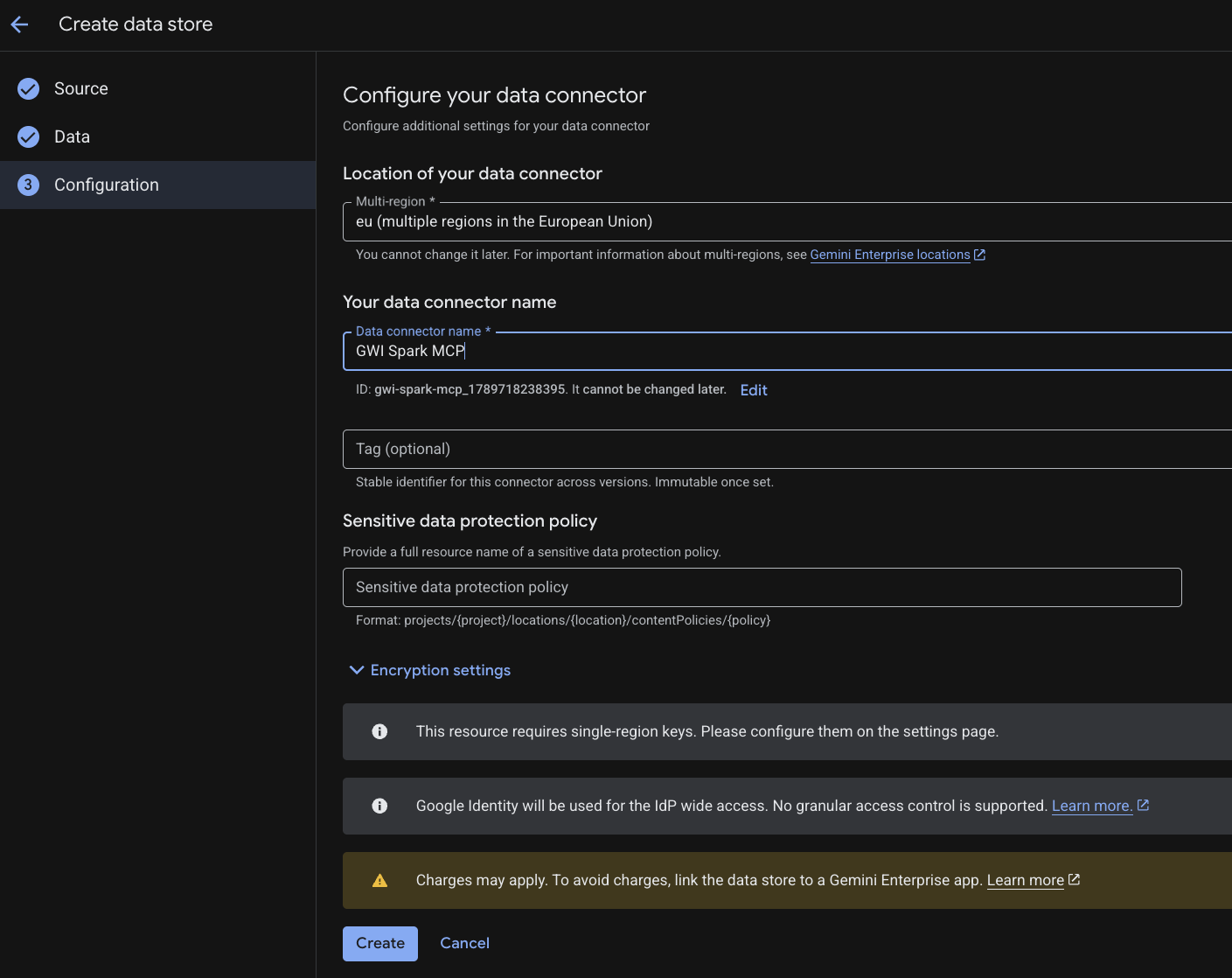

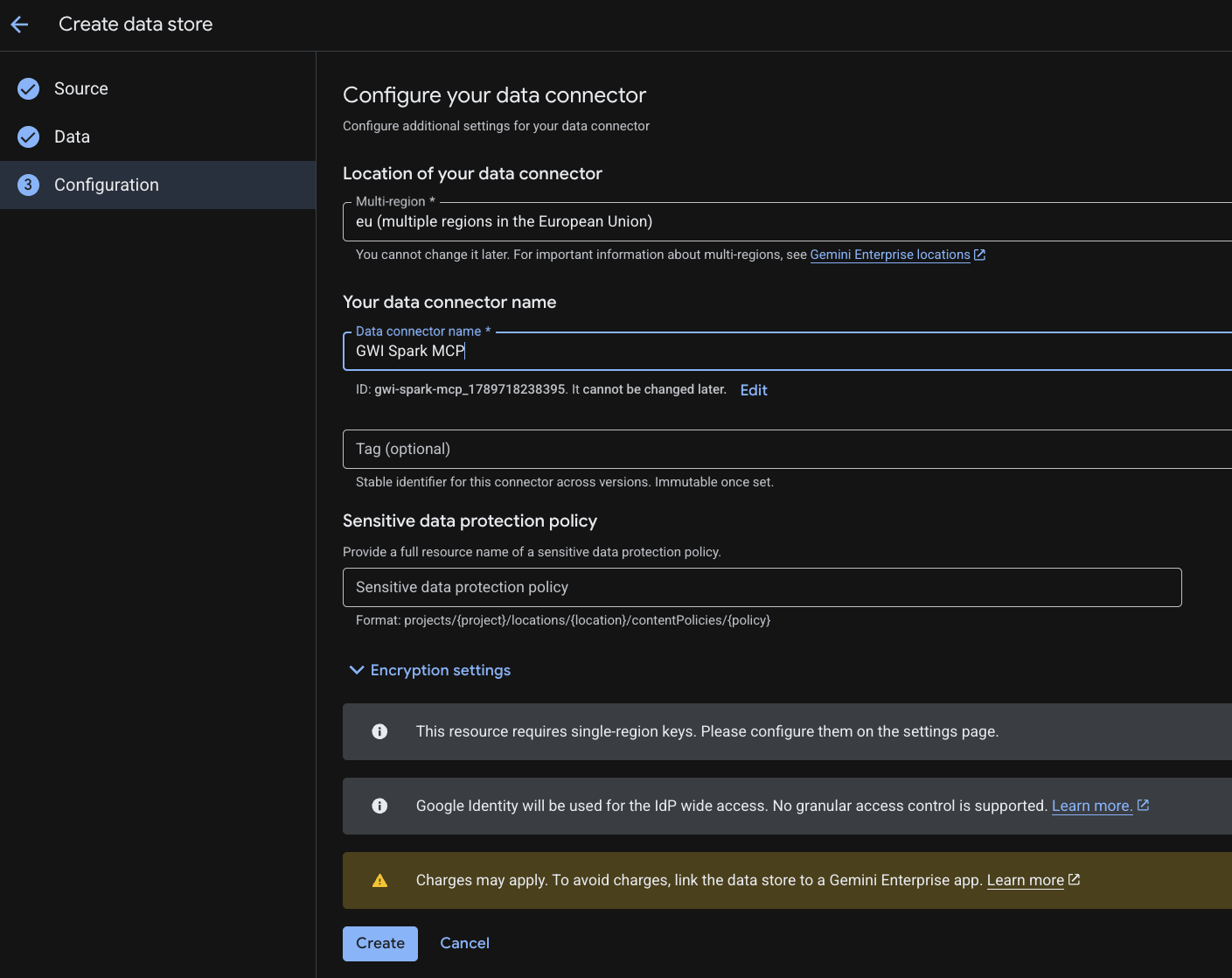

Configure data connector

​
5. Wait for Active, then enable actions

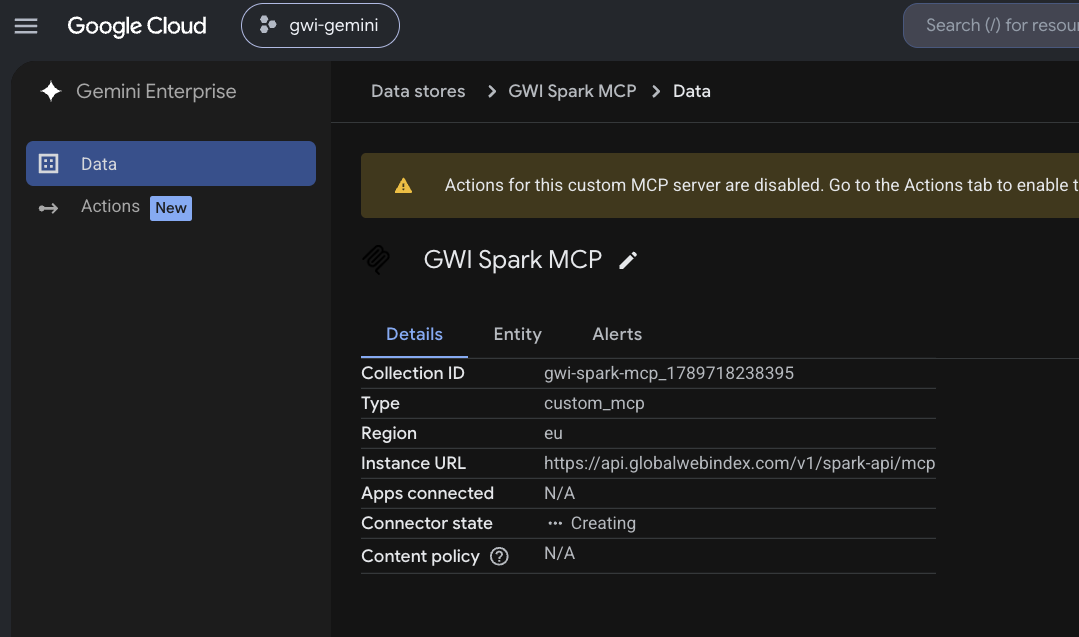

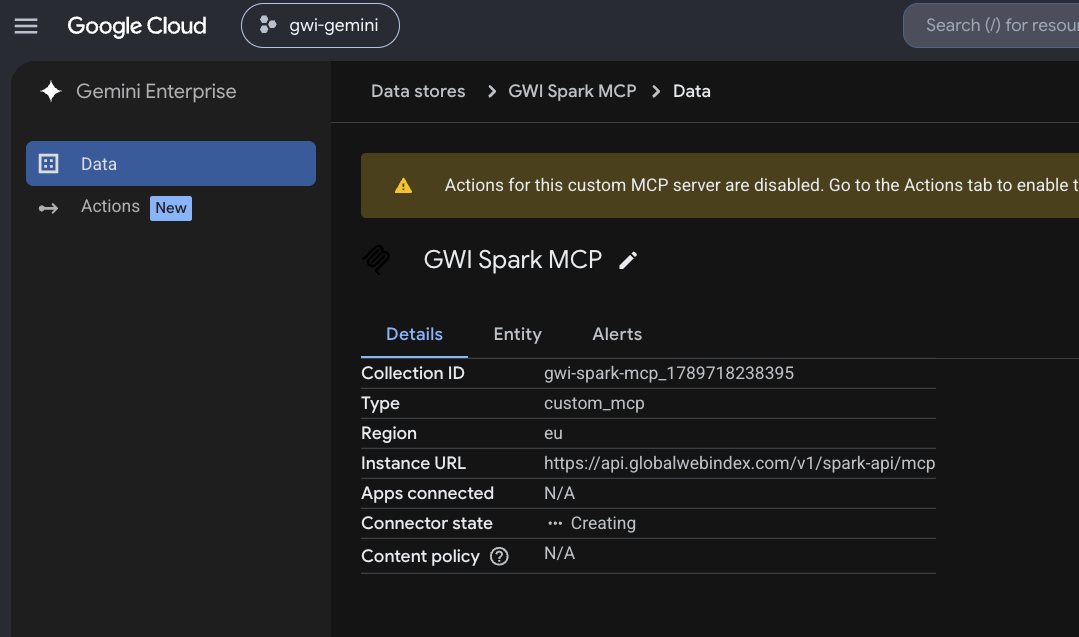

Maps to Google: Enable actions. After Create, open the data store. Connector state may show Creating briefly — wait until Active. Data store creating If a yellow banner says actions are disabled, go to Actions:
  1. Left nav (or banner) → Actions
  2. Reload custom actions (reauth / tools/list if prompted)
  3. Select the actions (tools) to enable — Google limit: up to 100 at a time
  4. Enable actions

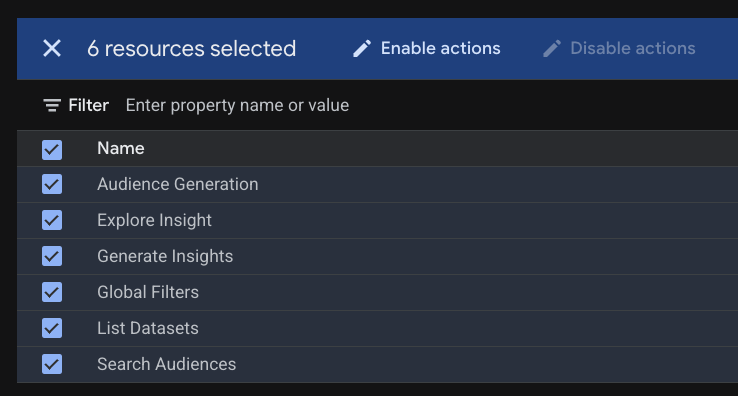

Reload custom actions Enable actions (v2beta tools)
Available actions may differ from the screenshot at any time as GWI updates Spark MCP. After Reload custom actions, enable all listed actions so the connector behaves as expected in chat. The v2beta endpoint exposes a different tool set than v1 — see Overview.

​
Connect the data store to your Gemini app

Creating the data store is not enough — it must be linked to a Gemini Enterprise app. Maps to Google: Connect a data store to an app.

​
6a. Create an app if you don’t have one

  1. Gemini Enterprise → Apps → + Create app
  2. Set display name and location (same multi-region as the data store if possible, for example eu) → Create

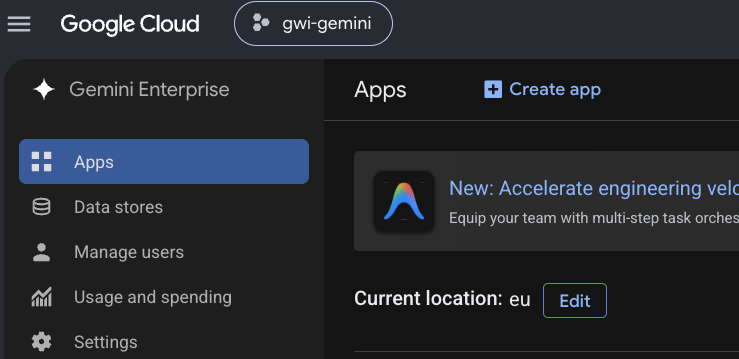

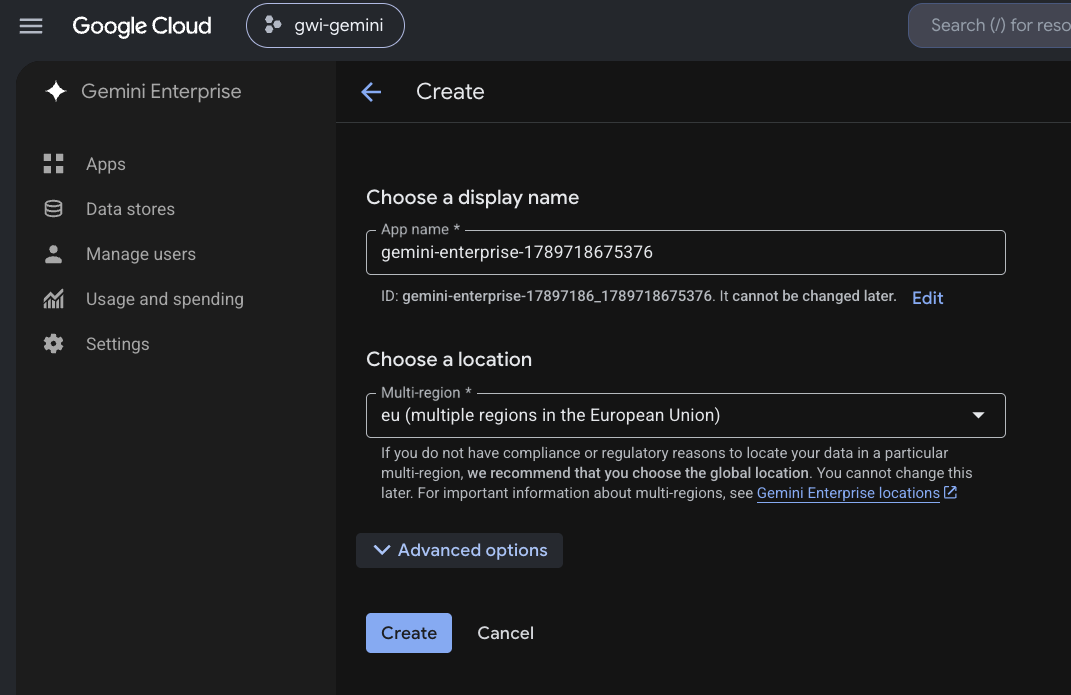

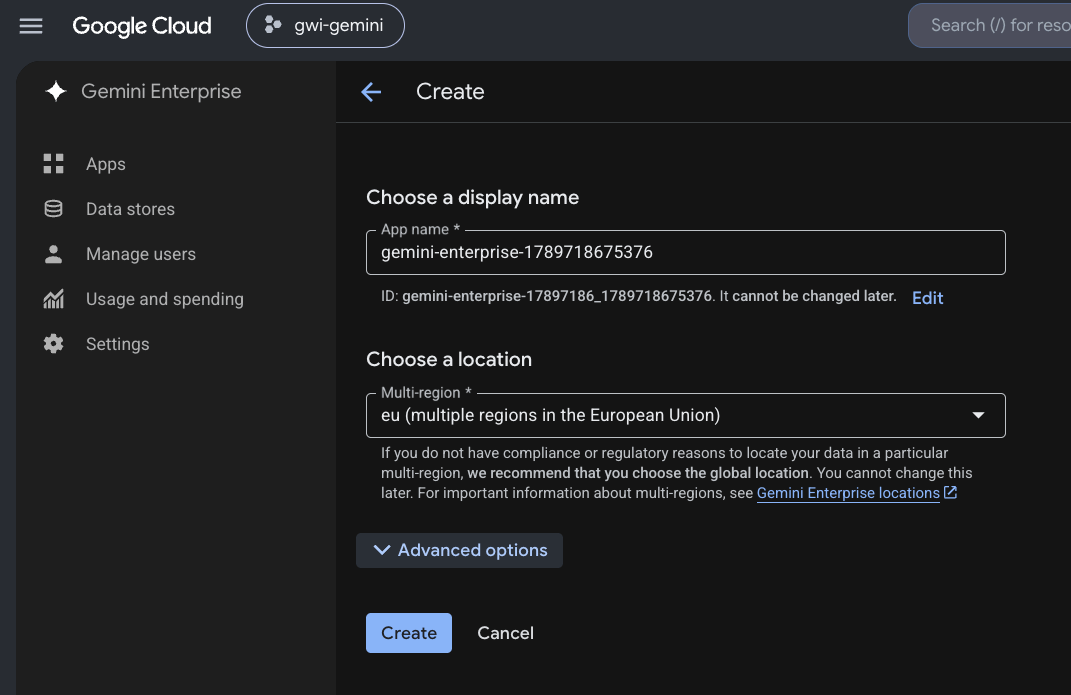

Apps list — Create app Create app form

​
6b. Connect the existing Spark MCP data store

  1. On Apps, find your app → under Connected data stores click view
  2. Add existing data stores
  3. In Connect an existing data store, select GWI Spark MCP (Custom MCP Server) → Connect
  4. You should see GWI Spark MCP · Custom MCP Server · Active

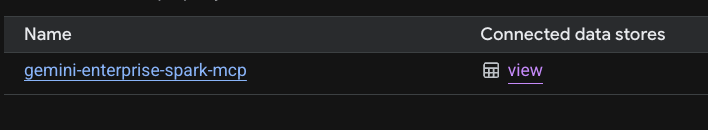

Apps row — view connected data stores
Add existing data stores

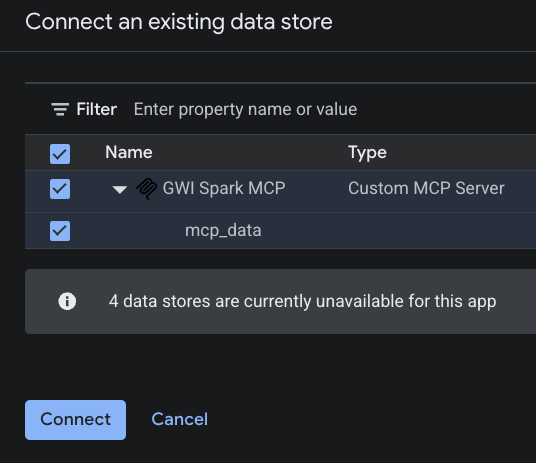

Connect existing data store picker
Connected GWI Spark MCP active

​
Authorize and activate the connector (first use)

Maps to Google: User authorization. Required before tools work in chat.
  1. Open the Gemini Enterprise web app (URL from the app overview)
  2. In the prompt bar, open the connector/tools control (near +)
  3. Find GWI Spark MCP — if it shows Authorise / Authorize, complete GWI sign-in
  4. Switch the connector toggle on (activate)

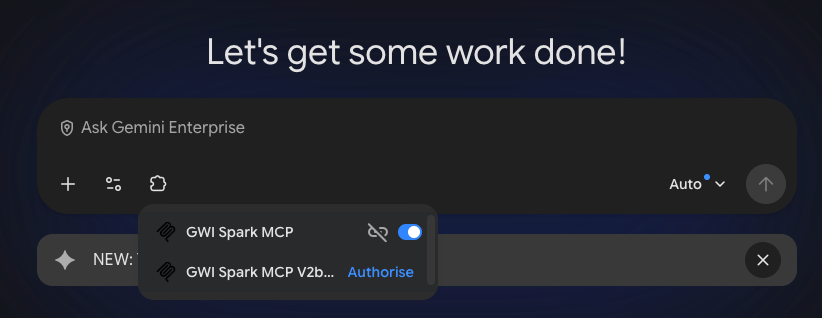

Authorize and activate connector Without authorize and toggle-on, the connector can appear but tools won’t run.

​
Using the connector

Maps to Google: Authorize your connected services. Once connected, authorized, and toggled on:
  1. In Gemini Enterprise chat, make sure GWI Spark MCP is active (connector/tools panel)
  2. Ask in natural language and name the connector if helpful, for example: Using GWI Spark MCP, give me insights about pet owners and their shopping habits.
  3. The assistant should call enabled actions and answer with sources
For the v1 MCP endpoint, switch the docs version to v1 and use Gemini Enterprise.
